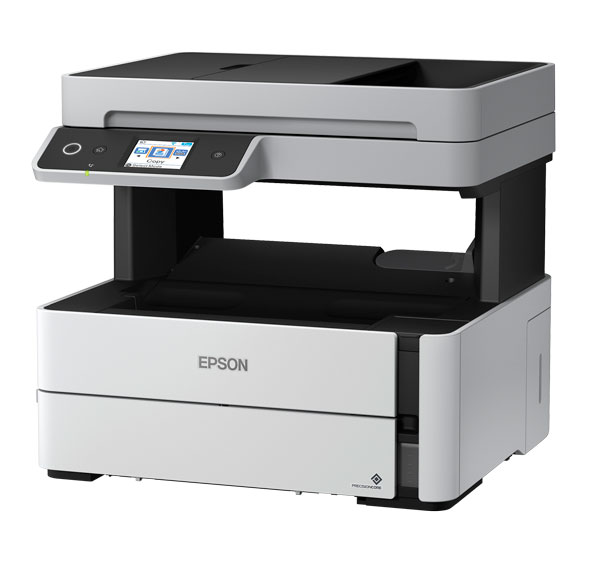

Epson EcoTank ET-M3170

EcoTank ET-M3170

EcoTank Multifunction Printers

Print | Copy | Scan | Fax | Ethernet | Wi-Fi Direct®


Overview Specs Consumables Downloads User Reviews Video Epson CoverPlus

Printer
PRINTER TYPE
EcoTank ET-M3170 C11CG92509
PRINTING METHOD On-demand Inkjet (piezoelectric)
NOZZLE CONFIGURATION 400 x 2 nozzles Black
MINIMUM INK DROPLET VOLUME 2.8 Picolitres
WHAT'S IN THE BOX - ET-M3170 EcoTank Printer
- Instruction manual
- CD-ROM for product setup
- Power cord
- USB cable not included (Optional extra)
- Initial ink bottle: Black (T532)
RESOLUTION
  1200 x 2400
PRINT SPEED
BLACK TEXT (MEMO) A4 20.0 ISO ppm1
PAPER HANDLING
PAPER SIZES A4, Letter, Legal, A6, A5, B5, B6, 8.5x13". Envelopes: No10, DL, C6
PAPER HOLD CAPACITY Input capacity: 250 sheets, A4 Plain paper (64-90g/m2)
REAR SLOT 1 Sheet
DOUBLE- SIDED PRINTING Yes

Scanner
SCANNING
SCANNER TYPE A4 Flatbed colour image scanner
DOCUMENT SIZE Up to A4
SCANNING RESOLUTION 1200 x 2400 dpi

Copy Function
COPY SPEED
BLACK TEXT NORMAL A4 17.0 ISO ipm1

FAX
TRANSMISSION & RECEPTION
TYPE Walk-up black-and-white and colour fax capability
TRANSMISSION SPEED Up to 33.6kbs (approx. 3 secs per page)
SPEED DIAL Up to 100 Names & Numbers
MEMORY Up to 100 pages (ITU-T No.1 chart)
FAX RESOLUTION <Black & White> Standard: 8pels/mm x 3.85lines/mm Fine: 8pels/mm x 7.7lines/mm Photo: 8pels/mm x 7.7lines/mm
<Colour> Fine: 200x200dpi Photo: 200x200dpi
ERROR CORRECTION MODE ITU Group3 fax with Error Correction Mode
PC FAX Yes
GROUP DIAL Yes - Up to 99 groups
BROADCAST FAX Yes (mono only)
AUTOMATIC DOCUMENT FEEDER FUNCTION
MAXIMUM DOCUMENT SIZE A4
PAPER TYPES SUPPORTED Plain paper 64~95g/m2
PAPER CAPACITY 35 pages (A4) / 10 sheets (Legal)
DUPLEX SUPPORT Duplex scan not supported, but the printer will auto 2-side copy once the user flips the scan page manually

General
OPERATING SYSTEMS
PRINTER DRIVERS*

Windows XP SP3 or later (32-bit), Windows XP Professional x64 Edition SP2 or later /Vista/7/8/8.1/10/11

MAC OS X 10.6.8, 10.7.x, 10.8.x, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC 100 ~ 240V
RATED FREQUENCY 50 ~ 60Hz
NOISE LEVEL

NOISE LEVEL #

 6.9B
56db
# According to ISO7779 Pattern with Plain Paper
INTERFACES
CONNECTIVITY High Speed USB — Compatible with the USB Specification.
IEEE 802.11b/g/n Wi-Fi, Ethernet
NETWORKING Wi-Fi Direct®
MOBILE DEVICE PRINTING Yes (Email Print, Remote Print Driver, Epson iPrint, Apple AirPrint, Google Cloud Print)
LCD SCREEN 2.4" LCD
WARRANTY
  12 months return to base Standard
  Epson Warranty
  For an additional 12 months (making a total of 24 months), you must register on www.epson.com.au/register_product/ within 12 months of purchase.
PRODUCT DIMENSIONS 375mm (W) x 347mm (D) x 346mm (H)
WEIGHT 7.3kg
INK Bottle
T532 Black
INK BOTTLE YIELDS2 Approx. Black 6,000 pages

1Black print speeds are measured in accordance with ISO/IEC 24734. Black copy speed are measured in accordance with ISO/IEC 29183 Actual print times will vary based on system configuration, software, and page complexity. Click here for details on ISO testing.

2 Quoted yields are extrapolated based on Epson original methodology from the print simulation of Test Patterns provided in ISO/IEC 19752. Quoted yields are NOT based on ISO/IEC 24711. Quoted yield may vary depending on the images that you are printing, the paper type that you are using, the frequency of your prints and environmental conditions such as temperature.


Warning to Epson printer owners. Many well known third party companies claim their inkjet printing papers are compatible with all Epson inkjet printers. Epson has reports from many customers who have used third party paper and have been very disappointed with the results. When the same customers have changed to genuine Epson paper, they have been amazed and pleased with the colour and quality of their prints. Epson recommends that you do not use any non genuine printing papers if you want to get the best results from your Epson printer. Epson printers are very carefully tuned to ensure Epson inks and Epson's patented MicroPiezo™ printhead produce the best quality prints using carefully selected Epson paper.

All other brands of printing papers are not wholly compatible with the printer.
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
