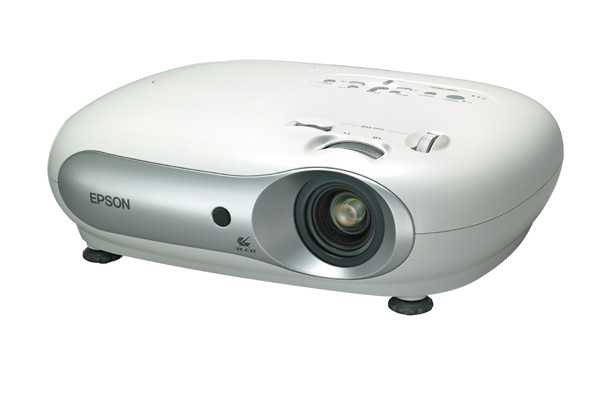

Epson EMP-TW20

Epson EMP-TW20

Home Theatre Projectors

Designed to meet the requirements of the discerning home cinema enthusiast


Overview Specs Consumables Downloads

PRODUCT TYPE Home Theatre Projectors
PRODUCT NAME Epson EMP-TW20
PRODUCT CODE V11H180053
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.55 inches wide
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 854 x 480 pixels
  Native resolution W-VGA
  Aspect ratio 16:9
  Pixel arrangement Stripe
PROJECTION LENS Type Manual: Zoom and Focus
  F-number 1.7 - 2.1
  Focus length 16.6mm
  Zoom ratio Digital Zoom (1.0-1.5)
LAMP Type 135 W UHE ETOR Lamp
OPTICAL SYSTEM Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE)
  30-300 inches (0.73 - 7.57m) (Wide)
  30-300 inches (1.11 - 11.37m) (Tele)
HIGH BRIGHTNESS MODE 1200 Lumens (Dynamic)
CONTRAST 1,000:1
SOUND OUTPUT 1w Monaural
COLOUR REPRODUCTION Full colour (16.77 million colours)
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Resize 1024 x 768 / 800 x 600 / 640 x 480
INPUT TERMINAL Video Mini D-sub 15 pin x 1 Blue-molding RCA x 4
  Audio RCA x 2 (White / Red)
VIDEO I/O
COMPOSITE VIDEO /
S-VIDEO		 Input Signal Video Standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Input Terminal Video Composite Video:
RCA (Yellow) x 1
S-Video: Mini DIN
    Audio RCA x 2
(in common with Analogue RGB)
COMPONENT I/O Input Signal Video Standard 525i / 625i / 525P / 625P
YCbCr 750P / 1125i YPbPr
  Input Terminal Video RCA x 3 (Red / Green / Blue)
    Audio RCA x 2
(in common with Analogue RGB)
CONTROL I/O
SERIAL I/O   I/O Terminal Mini D-Sub 9 pin x 1 (RS-232c)
    Child lock Built-in
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Keystone (Vertical) / Brightness / Contrast / Tint /
Saturation / Sound / Input signal etc.
TILT ANGLE 0 to 4 degrees
KEYSTONE CORRECTION Vertical: -30 to +30 degrees
CINEMA FILTER Controlled automatically with color mode (ON: Natural Theatre / Theatre Black1 / Theatre Black2, OFF: Living Room / Dynamic)
LENS SHIFT RANGE
  Verticle: 50% max (upward), 50% max (downward)
  Horizontal: 25% max (left and right)
OPERATING TEMPERATURE
  5°C to 35°C (41°F to 95°F) (20% to 80% Humidity)
  Cool-down period Approx. 8 seconds
  Start-up period Approx. 10 seconds
POWER SUPPLY VOLTAGE 100-240 VAC ±10% , 50/60Hz
DIMENSIONS
EXCLUDING FEET 373mm(W) x 295mm(D) x 111mm(H)
MAXIMUM DIMENSION 373mm(W) x 295mm(D) x 127mm(H)
WEIGHT Approx. 3.5kg
FAN NOISE
  High Brightness Mode 33dB (Dynamic / Living Room / Natural / Theatre)
  Low Brightness Mode 28dB (Theatre Black1 / Theatre Black2)
ACCESSORIES
POWER CORD 1.8m
REMOTE CONTROL Self Luminous
USER MANUALS Included
BATTERY AA x 2
WARRANTY* 2 years
* excluding lamp
* For more information visit http://www.epson.com.au/warranty/projector.asp?fromnav=8

Product Options

Product Code Item Code Description
ELP-LP33 V13H010L33 Lamp
3YWTW20 3YWTW20 Additional 1 Year Warranty, total of 3 Years Warranty
