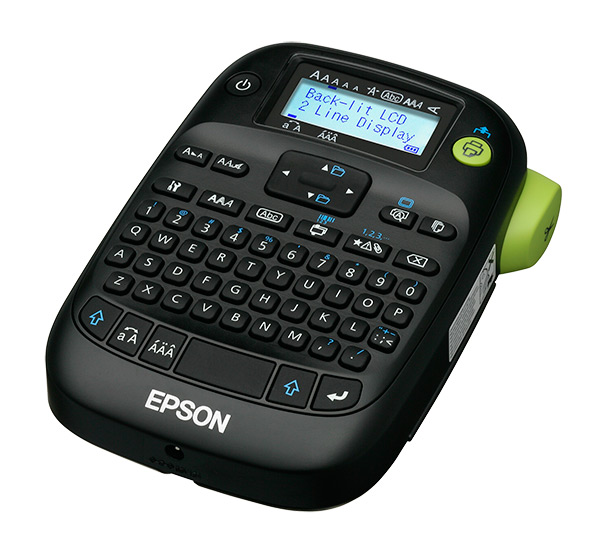

Epson LabelWorks LW-400

Epson LabelWorks LW-400

LabelWorks Label Printers

Portable Label Printer equipped with a backlit screen in a compact body


Overview Specs Consumables Downloads Video

Printer
PRINTER TYPE
Epson LabelWorks LW-400 C51CB70170
WHAT'S IN THE BOX • LW-400 Label Printer
• 12mm Black on White sample tape cassette
• User Guide and Warranty Card
HARDWARE FEATURES
DISPLAY LCD, 16 Char. x 2 line
MAXIMUN TAPE WIDTH 18 mm
BUILT-IN MEMORY Yes, up to 50 labels
KEYBOARD QWERTY
TAPE CUTTER Built-in, Manual
MAXIMUM RESOLUTION 180dpi
MAXIMUM PRINT WIDTH ~3/8" (9.0 mm)
MAXIMUM PRINT SPEED 6mm/sec
MAXIMUM NUMBER OF PRINTED LINES 4
BATTERIES 6 AA (not included)
OPEN COVER DETECTION Yes
BATTERY LEVEL INDICATOR Yes
TAPE INFORMATION
TAPE COMPATIBILITY LC
TAPE WIDTH 9mm, 12mm
TAPE LENGTH up to 9m
TAPE VARIETIES Standard, Iron-on, Metallic, Strong Adhesive, Glow-in-the-Dark and Clear
SOFTWARE FEATURES
NUMBER OF FONTS 14
TYPES OF FONTS Sans Serif, Sans Serif HG, Sans Serif ST, Gothic, Bold Gothic, Roman, US Roman, CL Roman, Mincho, Gyosho, Reisho, BR, CB, Script PL
NUMBER OF FONT STYLES 10
NUMBER OF FONT SIZES 5
NUMBER OF FONT WIDTHS 2
SPECIALITY PRINT OPTIONS 8 (Variety of Tab, Flag and Wraps)
BARCODE PRINTING 8 (CODE39, CODE128, ITF, CODABAR, UPC-A, UPC-E, EAN-8, EAN-13)
BUILT-IN SYMBOLS 300+
BUILT-IN FRAMES 75+
MAXIMUM CHARACTERS PER LABEL 80
AUTO NUMBERING Yes
MULTIPLE PRINT OPTIONS Yes
VERTICAL PRINTING Yes
MIRROR PRINTING Yes
NUMBER OF LANGUAGES 7 (English, Spanish, French, Brazilian Portuguese, European Portuguese, Italian, Dutch, German)
GENERAL
POWER CONSUMPTION Printing - 2.555w
Ready - 0.556w
Power Off - 0.18w
RATED FREQUENCY 60Hz
DIMENSIONS (D x W x H): 170 x 110 x 56mm
WEIGHT 418g
WARRANTY 12 months return to base
  Epson Warranty


Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

This printer is designed to function only with genuine Epson ink cartridges and not with third party ink cartridges. The printer may not function properly or at all if you use third party ink cartridges.
