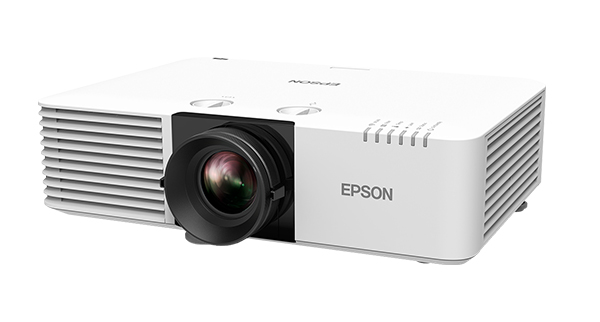

Epson EB-L770U

Epson EB-L770U

Installation Multimedia Projectors

Deliver brilliant displays with remarkable brightness and 4K enhancement


Overview Specs Consumables PDF Brochure Downloads

PRODUCT NAME EB-L770U
PRODUCT CODE V11HA96053BU
WHAT'S IN THE BOX EB-L770U projector, 3 m power cable, remote control, 2 x AA batteries, cable cover, User’s Guide
TECHNOLOGY
Projection system 3LCD
LCD panel 0.67-inch
Light source Laser diode
Resolution WUXGA
Colour light output 7,000 lumens
White light output 7,000 lumens
Native aspect ratio 16:10
Contrast ratio 2,500,000:1
LD input power 233.6 W
Keystone correction (Standard lens) Vertical: ±30°
Horizontal: ±30°
Lens shift (Standard lens) Vertical: ±50%
Horizontal: ±20%
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen size 50" to 500"
Projection distance 80" screen 2.33 m - 3.78 m
Throw ratio 1.35 (Zoom: Wide)
2.20 (Zoom: Tele)
Projection lens F number 1.5 - 1.7
Projection lens focal length 20 mm - 31.8 mm
Focus method Manual
CONNECTIVITY
Input: Digital 2 x HDMI, 1 x HDBaseT
Control: I/O 1 x RS-232C
Network: I/O 1 x RJ45, 1 x USB A (for optional ELPAP11)
USB: I/O 2 x USB Type A (1 x USB Type A for PC Free, Firmware update, Wireless LAN, Doc Camera, Copy OSD Settings, Content playback, External Camera, 1 x USB Type A for 5V/2A Power Supply only)
1 x USB Type B (for Firmware update, Copy OSD Settings)
HDBaseT Yes
Wireless connectivity Optional (ELPAP11)
Output: Digital 1 x HDMI
Output: Audio 1 x Stereo mini
ADVANCED FEATURES
4k enhancement Yes
Built-in speaker 10 W
External camera support (ELPEC01) Yes
Epson Projector Management
(Network & Control)		 Yes
Epson iProjection
(Multi-PC Projection)		 Yes
Epson Professional Tool Yes
Epson Projector Content Manager Yes
Wireless LAN Enterprise Security Yes
Split screen Yes
Super resolution Yes
Detail enhancement Yes
Scene adaptive gamma Yes
360° projection Yes
Content playback Yes
Edge blending Yes
Curved surface correction Yes
GENERAL
Dimensions D x W x H (including feet) 339 x 440 x 136 mm
Weight 8.5 kg
Power consumption: LD On 366 W
Power consumption: Standby 2 W
Noise level (Normal/Eco) 38 / 27 dB

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.


Usage Conditions
Epson products are designed and manufactured to be highly reliable and last a long time when used according to their specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to - do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (e.g. power cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
